Main Technical Data
| Model |
Rated
Voltage |
No-load |
Rated Operation |
Stall |
Operation
Voltage Range |
| Speed |
Current |
Speed |
Current |
Torque |
Current |
Torque |
| V |
r/min |
A |
r/min |
A |
g.cm |
OZ-IN |
A |
g.cm |
OZ-IN |
V |

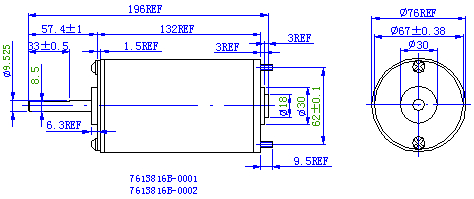

| 7613816B-0001 |
24 |
3500 |
0.5 |
3000 |
6.8 |
4000 |
55.6 |
52.8 |
28200 |
391.7 |
6-30 |
| 7613816B-0002 |
36 |
3800 |
0.35 |
3300 |
5.9 |
5000 |
69.4 |
42.8 |
36000 |
500 |
12-40 |
|
Model
|
Rated
Voltage
|
No-load
|
Rated Operation
|
Stall
|
Operation
Voltage Range
|
L
|
|
Speed
|
Current
|
Speed
|
Current
|
Torque
|
Current
|
Torque
|
|
V
|
r/min
|
A
|
r/min
|
A
|
g.cm
|
OZ-IN
|
A
|
g.cm
|
OZ-IN
|
V
|
mm
|
|
7609316B-0002
|
12
|
5000
|
2.0
|
4200
|
9.9
|
1580
|
21.9
|
52.8
|
9600
|
133.3
|
6-24
|
93
|
|
7608712B-0001
|
12
|
28500
|
1.0
|
2150
|
7.0
|
2160
|
30.0
|
27.0
|
9700
|
134.7
|
6-24
|
87
|
|
Model
|
Rated
Voltage
|
No-load
|
Rated Operation
|
Stall
|
Operation
Voltage Range
|
L
|
|
Speed
|
Current
|
Speed
|
Current
|
Torque
|
Current
|
Torque
|
|
V
|
r/min
|
A
|
r/min
|
A
|
g.cm
|
OZ-IN
|
A
|
g.cm
|
OZ-IN
|
V
|
mm
|
|
7807412C-0001
|
12
|
2300
|
1.0
|
1800
|
3.6
|
1080
|
15
|
13.5
|
5040
|
70
|
6-24
|
74
|
|
7808712C-0001
|
12
|
2800
|
1.0
|
2150
|
7.0
|
2160
|
30
|
28.8
|
9504
|
132
|
6-24
|
87
|
|
7809612C-0001
|
12
|
3000
|
1.0
|
2200
|
13.2
|
4320
|
60
|
47.0
|
16272
|
226
|
6-24
|
96
|
Main Technical Data
|
Model
|
Rated
Voltage
|
No-load
|
Rated Operation
|
Stall
|
Operation
Voltage Range
|
L
|
|
Speed
|
Current
|
Speed
|
Current
|
Torque
|
Current
|
Torque
|
|
V
|
r/min
|
A
|
r/min
|
A
|
g.cm
|
OZ-IN
|
A
|
g.cm
|
OZ-IN
|
V
|
mm
|
|
10205616B-0002
|
12
|
2800
|
1.0
|
2100
|
15.0
|
3600
|
50
|
57.5
|
14500
|
201.4
|
12-36
|
56
|
|
10206716B-0002
|
12
|
3400
|
2.0
|
2500
|
13.5
|
4000
|
55.6
|
44.0
|
14450
|
200.7
|
12-36
|
67
|
|
10207016B-0002
|
12
|
3130
|
2.2
|
2700
|
14.5
|
4000
|
55.6
|
94.5
|
29400
|
408.3
|
12-36
|
70
|
|
10207016B-0003
|
24
|
3100
|
1.3
|
2700
|
8.0
|
4000
|
55.6
|
54.5
|
31000
|
430.6
|
12-36
|
70
|
|
10206016B-0003
|
24
|
3050
|
2.0
|
2770
|
10.0
|
6000
|
83.3
|
89.4
|
66000
|
916.7
|
12-36
|
60
|
| Model |
Rated
Voltage |
No-load |
Rated Operation |
Stall |
Operation
Voltage Range |
Length |
| Speed |
Current |
Speed |
Current |
Torque |
Current |
Torque |
| V |
r/min |
A |
r/min |
A |
g.cm |
OZ-IN |
A |
g.cm |
OZ-IN |
V |
mm |
| 10205616B-0001 |
12 |
5000 |
2.3 |
4000 |
17.0 |
3000 |
41.7 |
74.5 |
14700 |
204.2 |
6-12 |
56 |
|
10206716B-0001
|
24
|
3000
|
3.0
|
2500
|
15.0
|
5000
|
69.4
|
77.5
|
31000
|
430.6
|
12-36
|
67
|
|
10207016B-0001
|
120
|
1450
|
1.2
|
1330
|
4.0
|
1800
|
25
|
36.5
|
23600
|
327.8
|
12-36
|
70
|
|
|
