Main Technical :



Model
Rated
Voltage
No-load
Rated Operation
Stall
Operation
Voltage Range
Speed
Current
Speed
Current
Torque
Current
Torque
V
r/min
A
r/min
A
g.cm
OZ-IN
A
g.cm
OZ-IN
V

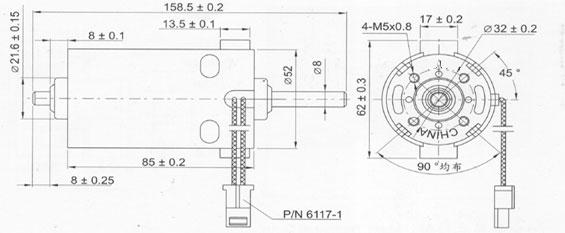

5208512C-0001
120
8500
0.3
5700
1.5
1440
20
3.9
4320
60
100-120


Main Technical Data

Model Rated
Voltage		  No-load Rated Operation Stall Operation
Voltage Range
Speed Current  Speed  Current  Torque  Current Torque
V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V

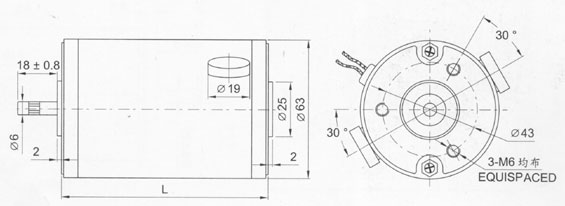

6309412D-0001 40 3800 0.29 3000 1.8 1428 19.8 7.4 6800 94.4 12-60 L=94
6309412D-0002 24 3550 0.28 3100 2.2 1000 13.9 14 7200 100 12-40 L=94
6309512D-0001
24
3900
0.40
2900
5.0
2500
34.7
18.5
9600
133.3
12-40
L=95
6311812D-0001
120
6000
0.50
4200
1.5
1440
20
3.8
4824
67
100-120
L=118

Main Technical Data

Model Rated
Voltage		  No-load  Rated Operation  Stall Operation
Voltage Range
Speed Current  Speed  Current  Torque  Current Torque
V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V

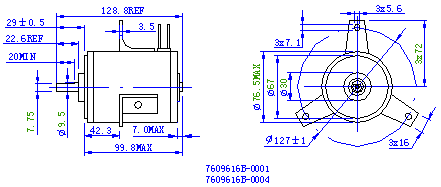

7609616B-0001 11 1700 0.55 1200 4.2 1890 26.25 12.4 6530 90.7 10-24
7609616B-0004 24 3800 0.55 3300 3.2 1500 20.83 19 10000 138.9 10-36

Main Technical Data

Model Rated
Voltage		 No-load Rated Operation Stall Operation
Voltage Range
Speed Current  Speed  Current  Torque  Current Torque
V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V

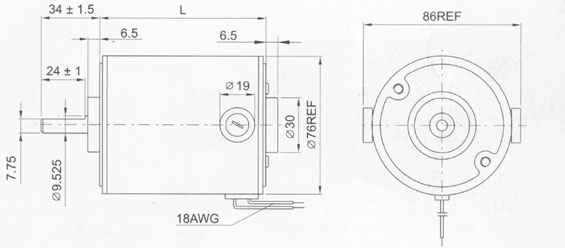

7609616D-0001 12 1100 0.25 850 0.88 650 9.0 3.4 3100 43.1 10-40 L=91
7609116D-0001
24
4000
0.8
3300
7.5
3200
44.4
35
16000
222.2
10-36
L=91
7610916D-0001
120
11500
0.85
8000
5.0
3600
50
11
8100
112.4
100-120
L=109
7609616D-0004
115
7000
0.2
5000
1.3
900
12.5
4.0
3100
43.1
40-115
L=96
