ZJTEX ELECTRIC MOTOR
DC FAN MOTORS FOR AUTOMOTIVE

1.ZD75 automotive-use DC Series electric motor



Auto-use Multi-speed D.C Electric Motor     This series of electric motors are used for driving cooling fans in automobiles, featuring high efficiency ,energy saving ,high precision of dynamic balance, low noise , multiple and adjustable speed.

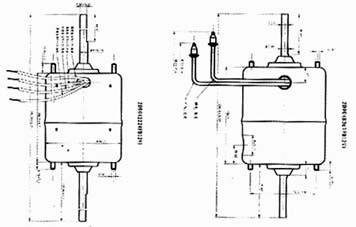

Sample dimension:

Main technical parameter :
Model
Adjust Revolution
Voltage
V
 Output Power(High speed)W
rpm(High speed)
Direction
single or double shaft
ZD75-2A
Two speed
12
59
3200
CW/CCW
Single
ZD75-2B
Two speed
12
59
3200
CW
Single
ZD75-2C
three speed
12
110
3700
CW/CCW
Single
ZD75-2D
there speed
12
110
3400
CCW
Double
ZD75-2E
Two speed
12
11
1500
CCW
Single
ZD75-2F
Two speed
12
55
3000
CW
Single

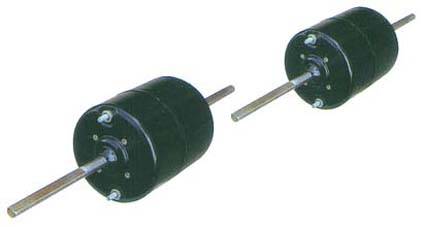

2.ZD90 series automotive fan coil fan motor


Technical parameter

MODEL VOLTAGE
V		 REV
S		 CURRENT
A		 POWER
O/W		 REV
R.P.M
ZD90
(2224FB12V)		 12 3S H  18.5max
M   12.5max
L   8.5max		 H150 M60
L32		 H  3500min
M  1800min
L  1500min
ZD90
(8367FB12V)		 12 2S H   14.2max
L   8.3max		 H90 L35 H  2150min
L   1350min

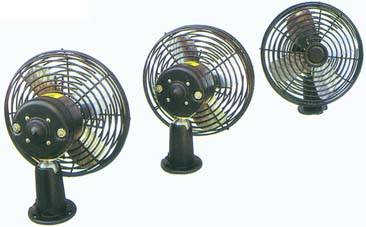

3.Dual speed series automotive fan

Technical parameter

MODEL VOLTAGE
V		 REV
S		 CURRENT
A		 POWER
I/W		 REV
R.P.M
2F-12 12 2S H  2.5max
L  1.3max		 H32 L16 H  3300min
L  1700min
2F-24 24 2S H  1.5max
L  0.8max		 H32 L16 H  3300min
L  1700min
