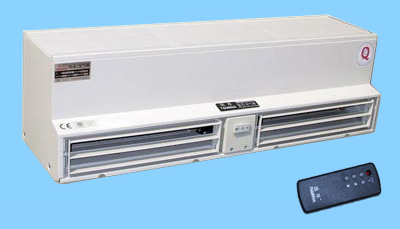

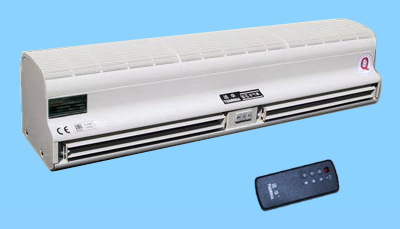

AIR CURTAIN

¡¡

ITEM NO: FM-906/909/912A FM-1206/1209/1212/1215A/C/Y
FM-1506/1509/1512/1515A/C/Y
RM-1209/1212/1509/1512-D/Y
FM:Code of Air Curtain
RM:Code of Heating/Cooling Air Curtain
C:Code of Double Speed D:Code of heating
Y:Code of infrated remote controlling
Wind Wheel Diameter: 90/125/150 mm
Overall Dimension: Length: 600/900/1200/1500 mm; Width: 180/215/270 mm; Height: 180/215/270 mm
Voltage: 200-240V
Frequency: 50Hz
Input Power: 55W-6kW
Max Wind Speed: 7-12(m/s)
Max Air Flow: 400-1930(m3/h)
Noise Level: 45-61(dB)
High wind speed but low noise
To be installed easily
Double speeds (Hi, Low, Off changeover) with remote controller
Uniform distributed air flow
Modern appearance
8.5-28 kg

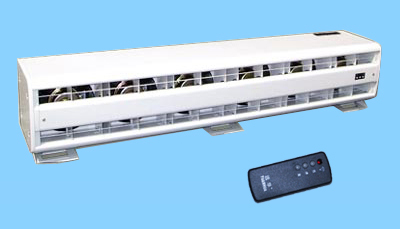

Direct-ventilating Air Curtain



ITEM NO: FM-1306/1309/1312/1315-Z
FM-1306/1309/1312/1315-Z/Y
FM:Code of Air Curtain
Z:Code of direct-ventilating
Y:Code of infrated remote controlling
Wind Wheel Diameter: 136 mm

Overall Dimension: Length: 600/900/1200/1500 mm; Width: 197 mm; Height: 157 mm
Voltage: 200-240V
Frequency: 50Hz
Input Power: 70-215W
Max Wind Speed: 7-10(m/s)
Max Air Flow: 630-2240(m3/h)
Noise Level: 41-58(dB)
High wind speed but low noise
To be installed easily
Double speeds (Hi, Low, Off changeover) with remote controller
Uniform distributed air flow
Modern appearance
Light-touch Switch Double Speed
MODEL
FM-1206C
FM-1209C
FM-1212C
FM-1215C
FM-1506C
FM-1509C
FM-1512C
FM-1515C
WHEEL DIAMETER(mm)
125
125
125
125
150
150
150
150
DIMENSION(mm)
length

width

height
600
215
215
900
215
215
1200
215
215
1500
215
215
600
270
270
900
270
270
1200
270
270
1500
270
270
Voltage
220~240V
F
50/60HZ
INPUT
POWER£¨W£©
Hi
<120
<140
<230
<280
<110
<130
<180
<250
Lo
<115
<135
<225
<260
<105
<125
<175
<235
MAX AIR SPEED£¨m/s£©
Hi
11
11
11
11
10
10
10
10
Lo
8
8
8
8
8
8
8
8
MAX AIR VOLUME£¨m3/h£©
Hi
950
1150
1750
2180
800
1260
1930
2350
Lo
700
900
1200
1500
600
990
1350
1650
NOISE LEVEL£¨dB£©
Hi
55
57
58
59
54
56
57
58
Lo
53
55
56
57
52
54
55
56
NET WEIGHT(Kg)
12
17
20
23.5
14.5
21
25
29.5


Keyboard Switch Double Speed Air Curtain
MODEL
FM-906C
FM-909C
FM-912C
FM-1206C
FM-1209C
FM-1212C
FM-1215C
WHEEL DIAMETER(mm)
90
90
90
125
125
125
125
DIMENSION
(mm)
 Length Width Height
600
180
180
600
180
180
600
180
180
600
215
215
900
215
215
1200
215
215
1500
215
215
Voltage(V)
220~240
Frequency(Hz)
50/60
INPUT POWER£¨W£©
Hi
55
60
80
120
140
230
280
Lo
50
55
75
115
135
225
260
MAX AIR SPEED£¨m/s£©
Hi
8
8
8
11
11
11
11
Lo
5
5
5
8
8
8
8
MAX AIR VOLUME£¨m3/h£©
Hi
400
600
850
950
1150
1750
2180
Lo
270
480
540
700
900
1200
1500
NOISE LEVEL£¨dB£©
Hi
50
52
53
55
57
58
59
Lo
49
51
52
53
55
56
57
NET WEIGHT(Kg)
8.5
11
14
12
17
20
23.5

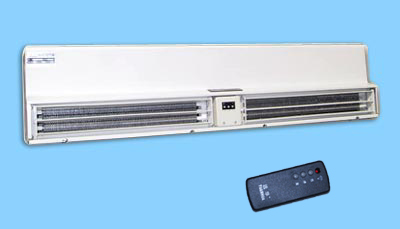

Infrared Remote Controlling Cooling & Heating Air Curtain
MODEL
RM-1209-D/Y
RM-1212-D/Y
RM-1209-3D/Y
RM-1212-3D/Y
WHEEL DIAMETER(mm)
125
125
125
125
DIMENSION(mm)
LENGTH
WIDTH
HEIGHT
900
235
215
1200
235
215
900
235
215
1200
235
215
VOLTAGE£¨V~£©
220~240
380~415
FREQENCY£¨Hz£©
50/60
MOTOR INPUT
POWER£¨W£©
140
230
140
230
MAX AIR
 Speed(m/s)
7
7
7
7
MAX AIR
 Volume(m3/h
800
1100
800
1100
NOISE Level
     dB
57
58
57
58
HEATER¡¯S
 Power(KW)
3
4
6
8
NET WEIGHT(Kg)
19
22
19
22
TEMPERATURE IMPROVEMENT(K)
25
25
35
35

Arc Air Curtain



Model
FM-1.25-06-B
FM-1.25-09-B
FM-1.25-12-B
FM-1.25-15-B
Diameter Of the Air Wheel£¨mm£©
125
125
125
125
Dimension £¨mm£©
Length
600
900
1200
1500
Width
215
215
215
215
Height
205
205
205
205
Power Volt £¨V £©
220~240
Frequency£¨Hz£©
50/60
Input Power£¨W£©
85
110
115
175
Air Speed£¨m3/min£©
>540
>540
>540
>540
Air Capacity£¨m3/h£©
>740
>1050
>1300
>1910
Noise£¨dB£©
<48
<53
<54
<56
Weight£¨Kg£©
10
15.5
19.5
23.4

Hot Air Curtain



Model
RM-1.5-09-D
RM-1.5-12-D
RM-1.5-09-3D
RM-1.5-12-3D
Diameter Of The Air Wheel (mm)
150
150
150
150
Dimension (mm)
Length
900
1200
900
1200
Width
266
266
266
266
Height
265
265
265
265
Power Volt (V)©
220
380
Frequency (Hz)
50£¯60
Input Power (Kw)
6.3
8.3
6.3¡«9.3
6.3¡«12.3
The Power Of The Heater (Kw)
6
8
6¡«9
6¡«12
Air Speed (m/min)
>420
>420
>420
>420
Air Capacity (m3/h)
>1200
>1690
>1200
>1690
Noise (dB)
<60
<60
<60
<60
Weight (Kg)
25.8
33
26
33.5
Temperature Increase (K)
>30
>30
>30
>30

Cross Output Air Curtain



Model
Diameter Of The Air Wheel (mm)
Dimension (mm)
Power Volt (V)
Frequency
(Hz)
Power Input (W)
Air Speed (m/min)
Air Capacity (m3/h)
Noise (dB)
Weight (Kg)
Length
Width
Height
FM-0.9-06
90
600
176
175
220~240
50/60
65
>420
>456
<49
11
FM-0.9-09
90
900
176
175
220~240
50/60
85
>420
>589
<50
13.2
FM-0.9-12
90
1200
176
175
220~240
50/60
105
>420
>830
<52
16.2
FM-1.25-06
125
600
215
193
220~240
50/60
120
>600
>732
<53
14
FM-1.25-09
125
900
215
193
220~240
50/60
120
>600
>1180
<55
20
FM-1.25-12
125
1200
215
193
220~240
50/60
190
>600
>1700
<58
24
FM-1.25-15
125
1500
215
193
220~240
50/60
230
>600
>1940
<59
25.2
FM-1.5-06
150
600
266
265
220~240
50/60
120
>510
>1160
<52
17
FM-1.5-09
150
900
266
265
220~240
50/60
145
>510
>1450
<54
25
FM-1.5-12
150
1200
266
265
220~240
50/60
180
>510
>2050
<56
30
FM-1.5-15
150
1500
266
265
220~240
50/60
220
>510
>2840
<57
30.6

Direct Output Air Curtain



Model
FM-1.56-06-Z
FM-1.56-09-Z
FM-1.56-12-Z
FM-1.56-06-Z-Y
FM-1.56-09-Z-Y
FM-1.56-12-Z-Y
Diameter Of The Air Wheel (mm)
156
156
156
Dimension (mm)
Length
600
900
1200
Width
220
220
220
Height
235
235
235
Power Volt (V)
220~240
Frequency (Hz)
50/60
Input Power (W)
100
165
200
Air Speed (m/min)
>600
>600
>600
Air Capacity (m3/h)
>1370
>2290
>2740
Noise (dB)
<60
<62
<62.5
Weight (Kg)
16
23.5
28
