Air curtain motor series

ZJTEX ELECTRIC MOTOR

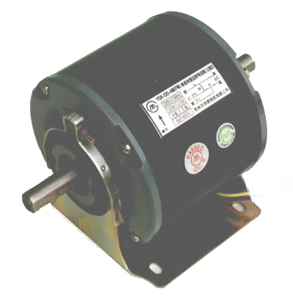

Air Curtain Motor

I. Description
This series covers type900 and 1200 hot and air curtains and special hot air curtain and are CAD designed. They feature compact, light, high efficiency, low temperature rise, low noise and are overload and thermally protected.

II. Specifications

Model Output power (w) Speed with full load (r/min) Noise [dB(A)] Type match

YSK-80-4M 80 1100/900 <=50 FM 150-900

YSK-120-4M 120 1100/900 <=50 FM 150-1200

YSK-150-4M 150 1200/1000 <=50 FM 150-1200

YSK-180-4M 180 1300/1100 <=50 FM 150-1200

YSK-250-4M 250 950/870 <=50 Ø2dia225 hot air curtain

Remarks:
1. F12 and F14 shaft motors are available. Special shaft diameter motors can customized
2. wiring as per leadwire colos and capacitance can not be changed without permission

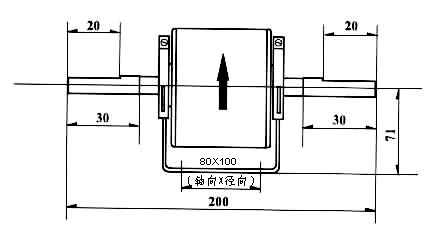

III. Dimensions, Mounting size


Model	Output power (w)	Speed with full load (r/min)	Noise [dB(A)]	Type match
YSK-80-4M	80	1100/900	<=50	FM 150-900
YSK-120-4M	120	1100/900	<=50	FM 150-1200
YSK-150-4M	150	1200/1000	<=50	FM 150-1200
YSK-180-4M	180	1300/1100	<=50	FM 150-1200
YSK-250-4M	250	950/870	<=50	Ø2dia225 hot air curtain
Remarks: 1. F12 and F14 shaft motors are available. Special shaft diameter motors can customized 2. wiring as per leadwire colos and capacitance can not be changed without permission
