YLS Series Motor for Axial Fan of Fan Cooled Chiller |

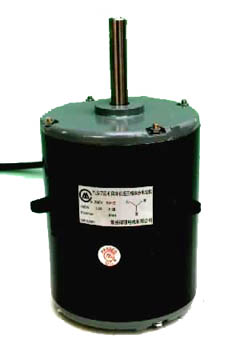

This YLS series of motors can be used in fan cooled packaged water chiller units with axail flow fans. The motors are water-proof designed with long life steel plate houseing and can be used in 24-32 inch axial fans at 380v/50Hz or 220v/440v, 50/60Hz. |
Model |
(w) |
(A) |
r/min |
dB(A) |
|
|||||||||

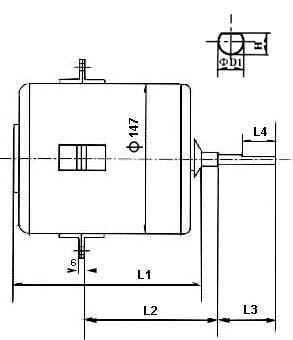

A | B | C | D | L1 | L2 | L3 | L4 | ?D1 |
|
|||||
YLS-250-6 | 250 | 0.5 | 920 | <=55 | 215 | 190 | 15 | 10 | 180 | 125 | 35 | 30 | 15 |
|
YLS-370-6 | 370 | 0.75 | 920 | <=58 | 215 | 190 | 15 | 10 | 180 | 125 | 35 | 30 | 15 | 14 |
YLS-550-6 | 550 | 1.1 | 920 | <=58 | 215 | 190 | 15 | 10 | 215 | 117 | 50 | 45 | 15 | 14 |
YLS-550-8 | 550 | 1.2 | 710 | <=55 | 215 | 190 | 15 | 10 | 235 | 117 | 50 | 45 | 15 | 14 |
YLS-750-6 | 750 | 1.4 | 920 | <=58 | 215 | 190 | 15 | 10 | 235 | 117 | 50 | 45 | 15 | 14 |
YLS-1100-6 | 1100 | 2.1 | 920 | <=60 | 215 | 190 | 15 | 10 | 265 | 140 | 40 | 35 | 16 | 14 |
