FL 08 SERIES CROSSFLOW BLOWER

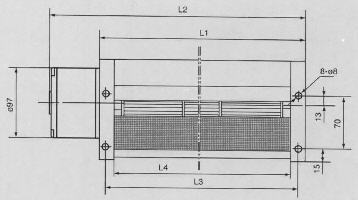

Outline Drawing:



	Model                           L1               L2            L3                    L4       FH0835Y-01 390 480 372 350 FH0850Y-01 540 630 522 500 FH0870Y-01 740 830 722 700 FH0880Y-01 840 930 822 900

Volume-Static pressure curves:

Technical specification:


Model	Voltage(V/Hz)	Current(A)	Input power(W)	Rated speed(RPM)	Air volume(CBM/Hr)	Noise(dBA)	Curve
FH0835Y-01	220/50	0.140	30	1400	420	55	1
FH0850Y-01	220/50	0.165	35	1380	585	56	2
FH0870Y-01	220/50	0.190	40	1400	820	56	3
FH0890Y-01	220/50	0.220	45	1350	890	55	4
