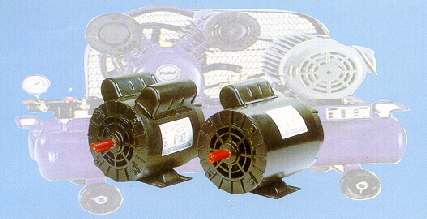

Suitable for compressor & pumps and any applications requiring high starting torque
with low amp draw.
Internal Fan Cooling
Single phase capacitor start
Open drip-proof enclosure

HP Volts FL. Amps RPM FR  S.F. Shaft Dia. Remark 1/2HP 115/230 8.8/4.4 3450 56 1.0 1/2" Belt-drive 3/4HP 115/230 11.4/5.7 3450 56 1.0 5/8" Belt-drive 1HP 115/230 12.6/6.3 3450 56 1.0 5/8" Belt-drive 2HP SPL 115/230 15/7.5 3450 56 1.0 5/8" Belt-drive 3HP 115/230 24/12 3450 56 1.0 5/8" Belt-drive 5HP SPL 208-230 15-16 3450 56 1.0 5/8" Belt-drive 1/4HP 115/230 6.0/3.0 1725 48 1.0 1/2" Belt-drive 1/3HP 115/230 6.6/3.3 1725 48 1.0 1/2" Belt-drive 1/2HP 115/230 9.2/4.6 1725 56 1.0 5/8" Belt-drive 3/4HP 115/230 11.4/5.7 1725 56 1.0 5/8" Belt-drive 1.5HP/1.12Kw 115/230 14.6/7.3 1720 56 1.0 5/8" Direct-drive 2HP/1.5Kw 115/230 18.6/9.3 1720 56 1.0 5/8" Direct-drive 1.5HP/1.12Kw 115/230 14.0/7.0 3450 56 1.0 5/8" Direct-drive 2HP/1.5Kw 115/230 18.0/9.0 3450 56 1.0 5/8" Direct-drive 1.5HP/1.12Kw 220 7.0 2800     16mm Direct-drive 2HP/1.5Kw 220 9.3 2800     16mm Direct-drive 2.5HP/1.9Kw 220 12.0 2800     16mm Direct-drive
