Key specification:

Compact design. Low noise, Damp proof. Water proof. Obstruct bum. Antiseptic . strong & long service life. Speed changeable with tap circuits or hall components (PG stepless speed adjustable)

Suitable for indoor unit of split type air-conditioner.

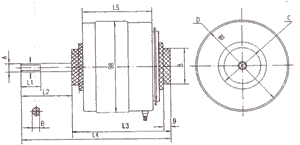

Mounting Arrangements


Series	L1	L2	L3	L4	L5	A	B	C	D	E
YDK-I	39	43-47	6-8	80-118	18	8	92	40-50	48-56	7
YDK-II	49	53-47	6-8	100-138	20	8	92	35-55	42-60	7

Available L1=39,43,49,53,special thickness available upon new tooling.

Technical Data


Model	Power W	Voltage V	Freq. Hz	Current A	Pole	Speed rpm	Noise dB(A)	Capacitors m F/450V
YDK-4A(I)	6	220	50	0.13	4	880-1310	< 35	0.6
YDK-4B(I)	10	220	50	0.16	4	880-1310	< 35	1.0
YDK-4C(I)	12	220	50/60	0.19	4	880-1310	< 35	1.2
YDK-4D (II)	15	220	50/60	0.23	4	880-1340	< 35	1.2
YDK-4E (II)	18	220	50/60	0.25	4	880-1340	< 35	1.5
YDK-4F (II)	20	220	50/60	0.26	4	880-1340	< 35	2

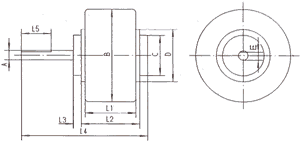

Mounting Arrangements


Series	L1	L2	L3	L4	L5	A	B	C	D
YDK-4H I	10-20	57	94	152	66	8-10	40	50	7
YDK-4H II	13.5	44	109	154	80.5	8-10	52	62	7

Technical Data


Model	Voltage V	Freq. Hz	Power W	Pole	Speed rpm	Current A	Noise dB(A)	Capacitor m F/450V
YDK20-4	220	50	20	4	800-1340	0.22	< 42	1
YDK25-4	220	50	25	4	800-1340	0.25	< 42	1
YDK30-4	220	50	30	4	800-1340	0.27	< 42	1.5
YDK35-4	220	50	35	4	800-1340	0.3	< 42	2
YDK41-4	220	50	41	4	800-1340	0.32	< 42	2
YDK20-4A	220	60	20	4	800-1340	0.3	< 42	1
YDK25-4A	220	60	25	4	800-1340	0.35	< 42	1.5
YDK30-4A	220	60	30	4	800-1340	0.38	< 42	1.5
YDK35-4A	220	60	35	4	800-1340	0.42	< 42	2
YDK41-4A	220	60	41	4	800-1340	0.45	< 42	2
YDK41-4B	115	60	41	4	800-1340	0.75	< 42	5
